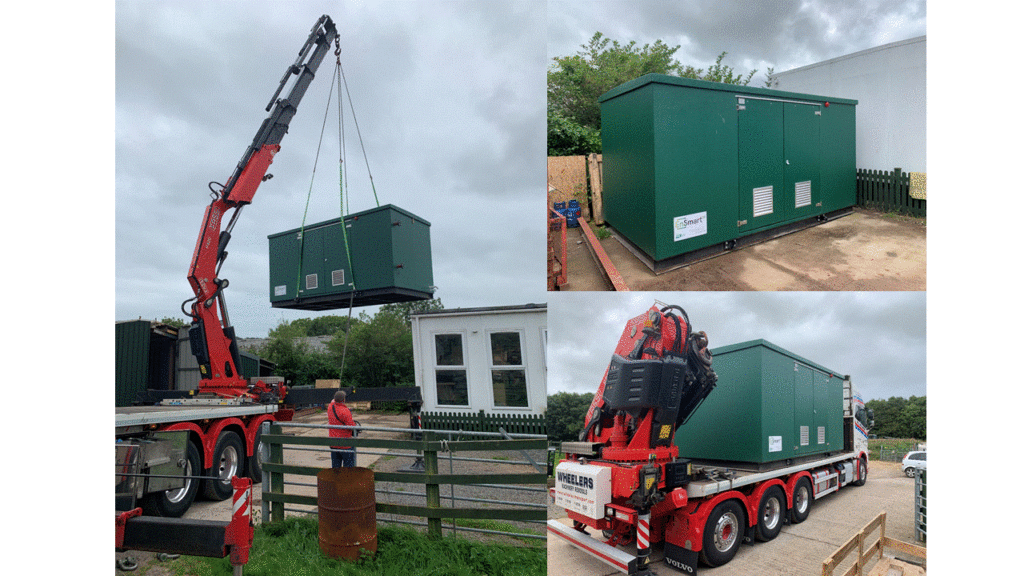

The completed off site construction of a containerised packaged plant room gets ‘very carefully’ lifted onto the Wheelers transport vehicle before it’s final onward journey to a Leisure Centre in Wickford, Essex.

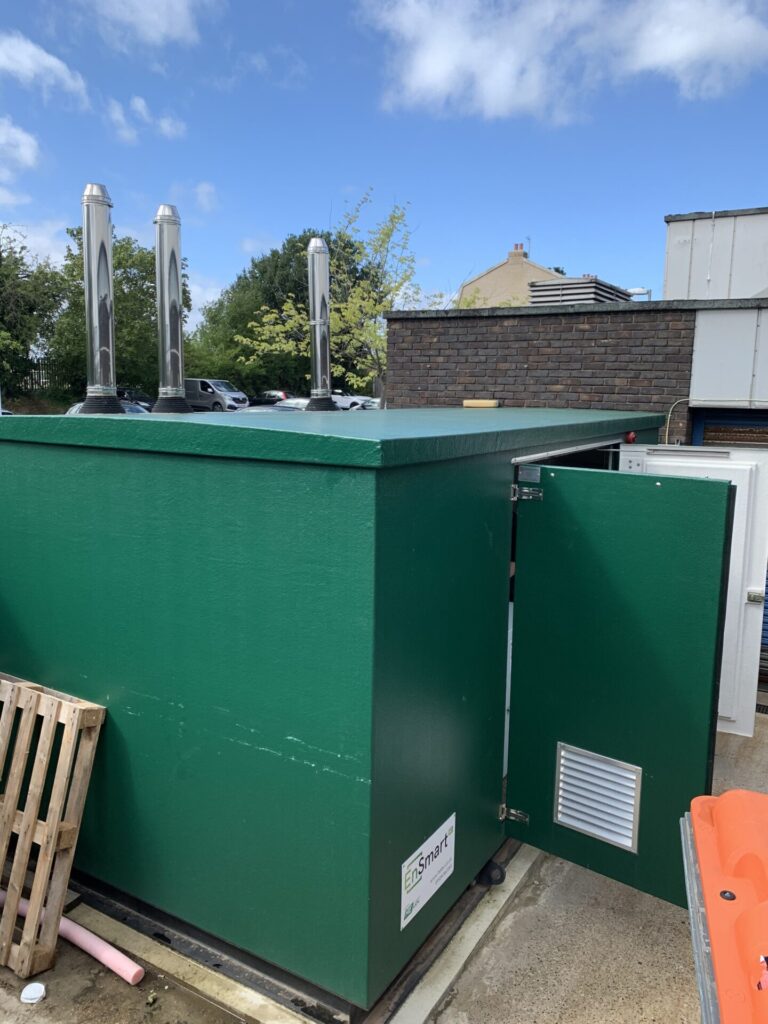

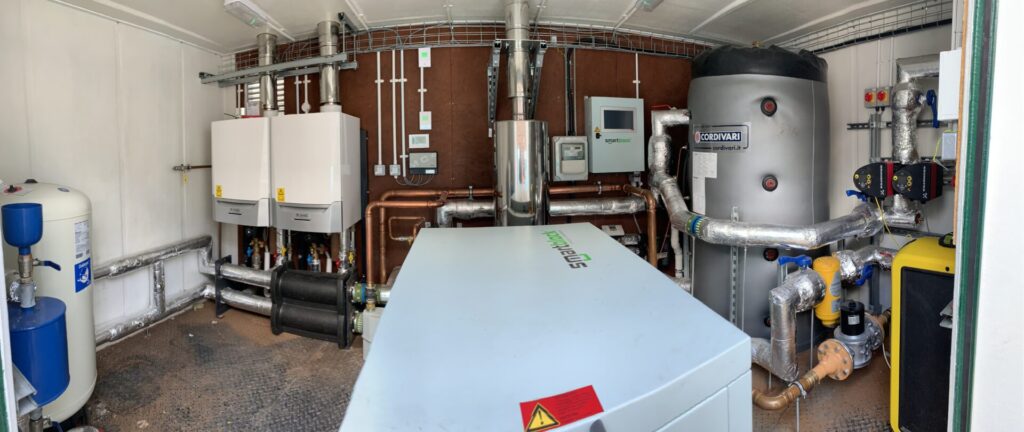

The “EnSmart 40” system, an externally sited pre-packaged containerised plant room has been designed and constructed by Helec comprising of the following main equipment;
1 x 22kWe Energimizer Combined Heat & Power unit
2 x Remeha Quinta Ace 115 wall hung boilers
1 x 1,000 ltr Thermal Store
1 x Spirotech Vacuum Degasser & system pressurisation set
1 x Duty/Standby Grundfos pump set
The EM22NG CHP will act as the “lead boiler” producing 47kW/th to service the Wickford Swim & Fitness Centre services via the charged 1,000ltr thermal store.
This highly efficient retrofit application will be integrated into the leisure centres exisiting hydraulic circuit and is anticipated to operate 24/7, 365 days a year with expected savings to the leisure centre owners of at least £15,000.00 a year in reduced energy costs whilst helping to reduce its CO2 emissions by 66,800Kgs.
If you wish to know more about this and many more EnSmart projects underway with Helec, then call us on 01934 862264.
